Protective measures for outdoor LED displays in bad weather

As an important carrier of outdoor advertising, outdoor LED displays have much higher requirements for their use environment than ordinary displays. During the application process, outdoor LED displays often face challenges from bad weather such as high temperatures, typhoons, heavy rains, and lightning. In order to ensure that the display can still operate safely and stably under these bad weather conditions, it is crucial to take effective protective measures. The following are some protective measures for outdoor LED displays in bad weather.

High temperature protection

Outdoor LED displays are usually large in area, consume a lot of power, and generate more heat. If the heat dissipation is not timely, it may cause problems such as overheating and short circuit of the circuit board. To prevent such situations from happening, it is necessary to ensure that the display circuit board is in good condition during the production process. At the same time, the shell design should try to adopt a hollow structure to facilitate heat dissipation. During installation, it is necessary to ensure that the ventilation of the environment where the display is located is good. If necessary, an air conditioner or fan can be installed inside the display to help dissipate heat. Here are some installation methods for LEDs.

Typhoon protection

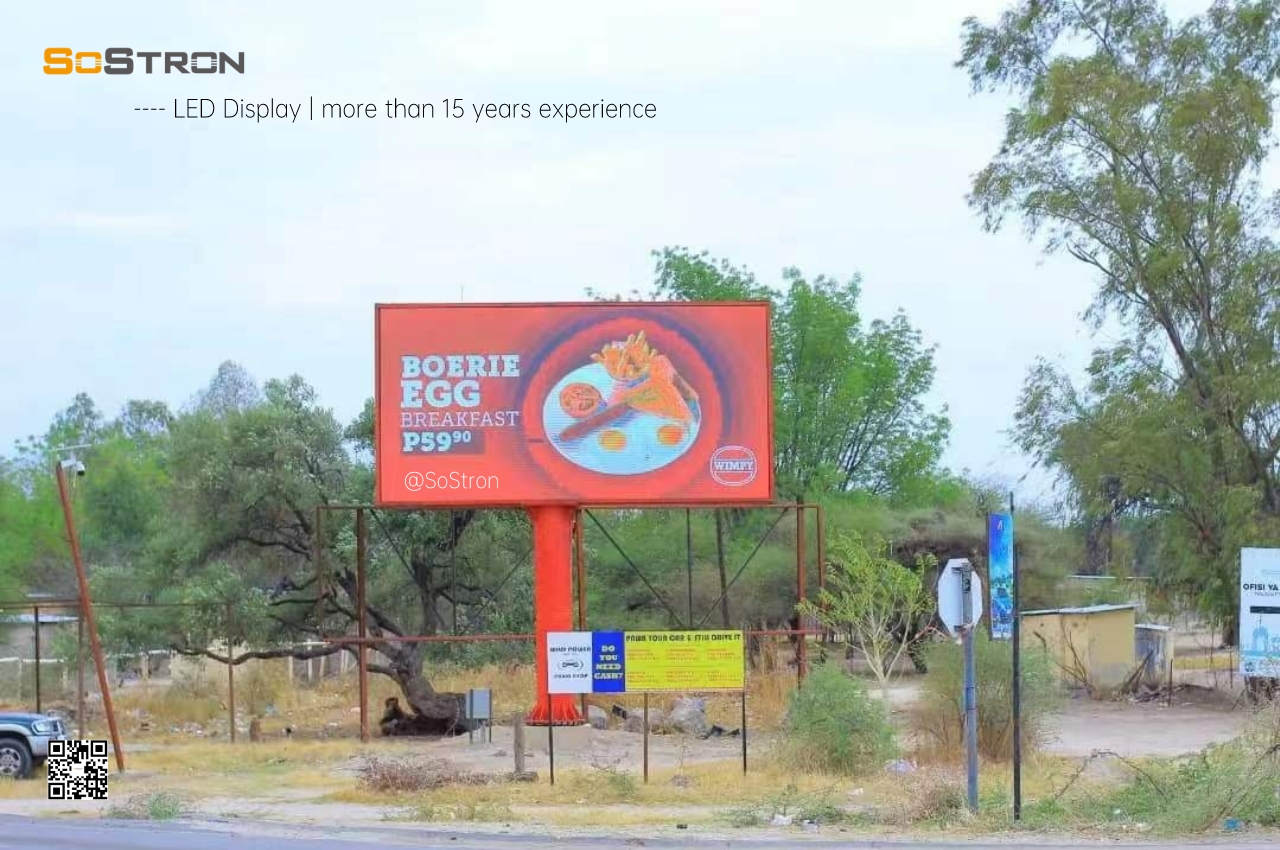

During the typhoon season, the installation location and method of the outdoor LED display are crucial to its protection ability. Different installation methods, such as wall-mounted, inlaid, column-mounted, suspended, etc., have different requirements for the load-bearing steel frame structure of the display. During the design and installation process, the engineering unit must strictly follow the standards of the typhoon resistance level and ensure that the structure has a certain earthquake resistance to prevent the display from falling in bad weather and avoid safety hazards.

Rainstorm protection

In the southern region where rain is frequent, outdoor LED displays must have a high level of waterproof performance. Under normal circumstances, outdoor LED displays need to achieve an IP65 protection level, and the display module should be encapsulated with glue and designed with a waterproof box. The module and the box should be connected with a waterproof rubber ring to ensure that rain does not invade the internal components to avoid damage. Take you to understand the LED IP level in 5 minutes.

Lightning protection

Lightning protection measures for outdoor LED displays include the following aspects:

Direct lightning protection: For displays that are not within the direct lightning protection range of tall buildings, lightning rods should be installed on or near the top of the steel structure.

Inductive lightning protection: The power supply system of the display should be equipped with a 1-2 level power lightning arrester, and the signal line should be equipped with a signal lightning arrester. At the same time, the power supply system of the computer room needs to be protected by a third level of lightning protection, and the signal input/output equipment end of the computer room also needs to be equipped with a signal lightning arrester.

Line protection: The power supply and signal lines of all LED displays should be shielded and buried to reduce the impact of lightning induction. Provide you with a guide to purchasing LED display power supplies.

Grounding system: The grounding system of the front end of the outdoor LED display and the computer room must meet the system requirements. The front-end grounding resistance should be less than or equal to 4 ohms, and the room grounding resistance should be less than or equal to 1 ohm to ensure the safe operation of the system.

In summary, taking corresponding protective measures for different severe weather conditions can effectively ensure the safe operation of outdoor LED display screens in complex environments. Whether it is high temperature, typhoon, heavy rain, or lightning, as long as adequate precautions are taken, outdoor LED display screens can operate stably in severe weather to ensure the continuous display of advertising content.
